Lexus ISF BREMBO BRAKES
Installation for Lexus ISF brake caliper on various Lexus Applications
requirements
parts

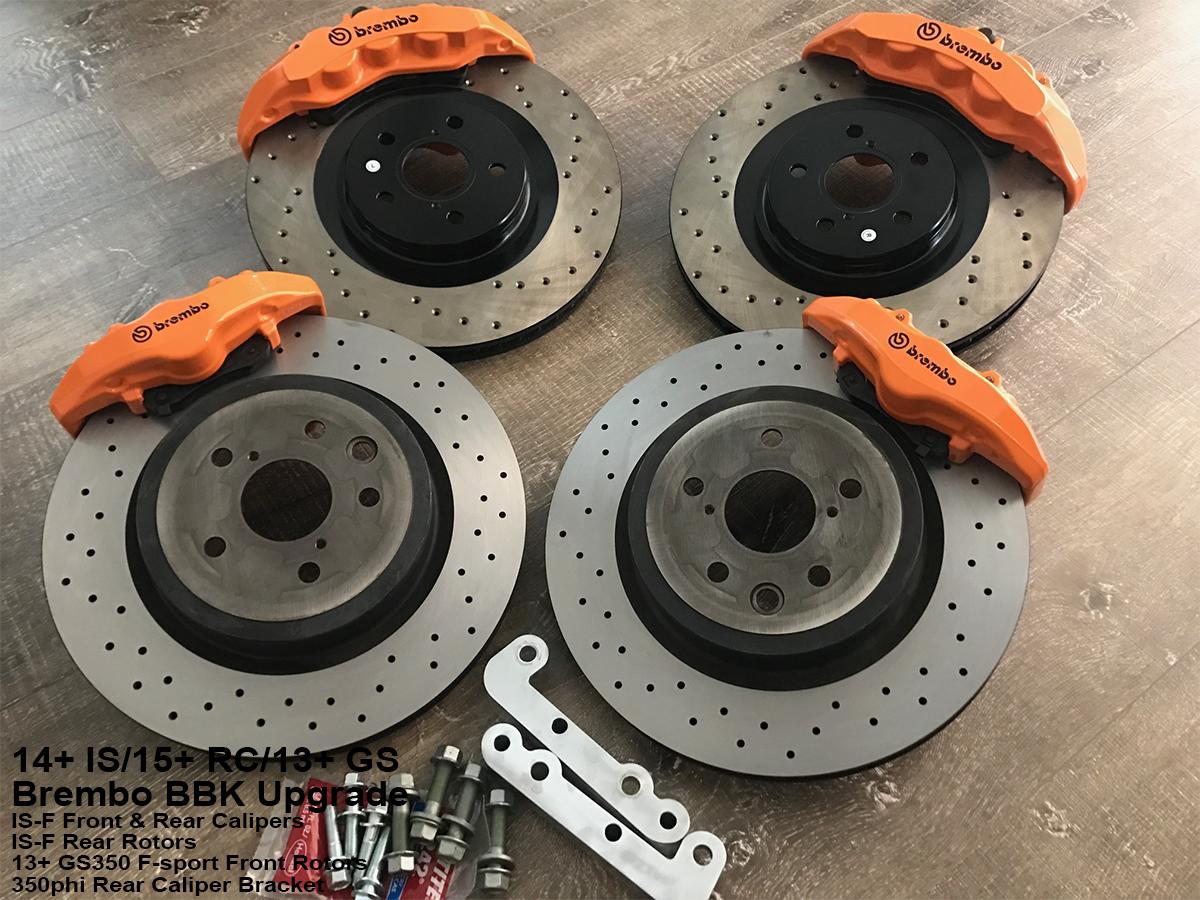

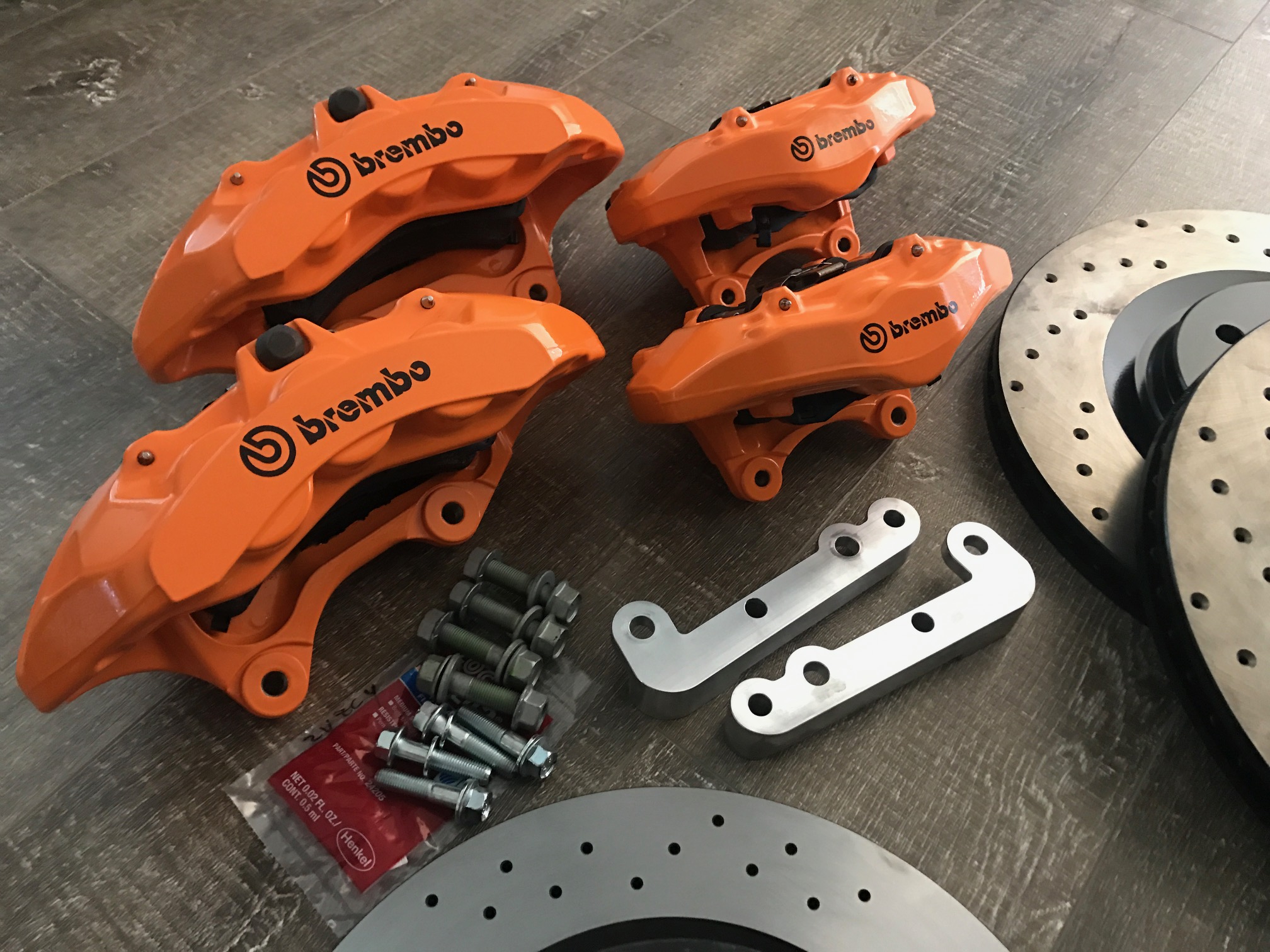

- Front and Rear OEM Brembo ISF calipers
- Front 2013 and up GS350 F Sport rotors (356mm x 30mm) *cannot use ISF front rotors
- Rear ISF rotors (345mm x 28mm)
- 350phi Rear bracket mounting kit
2013+ Lexus GS350 F-Sport 356mm Front rotors
- OEM toyota: OEM 2pc discontinued rotors:
43512-30371 or 43512-30370: Disc, Right 2pc rotor
43516-30061 or 43516-30060: Disc, Left 2pc rotor
OEM 1pc steel rotors:
43512-WY010: Disc Right
43516-WY020: Disc Left
Notes
- Will require modifications to front and/or rear dust shield
- Will require modifications to rear calipers

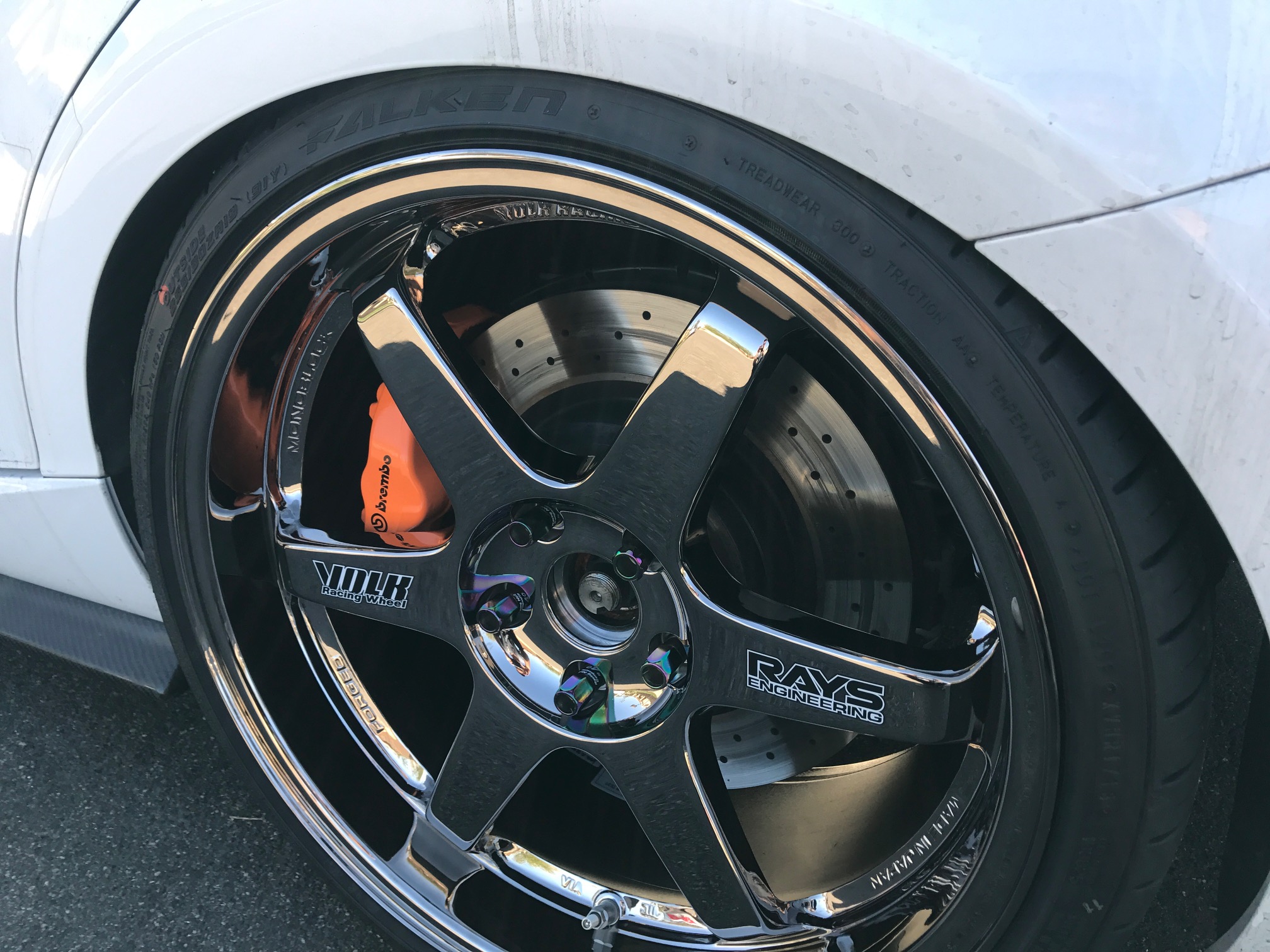

- Will require wheels 18" and up that can clear big brakes

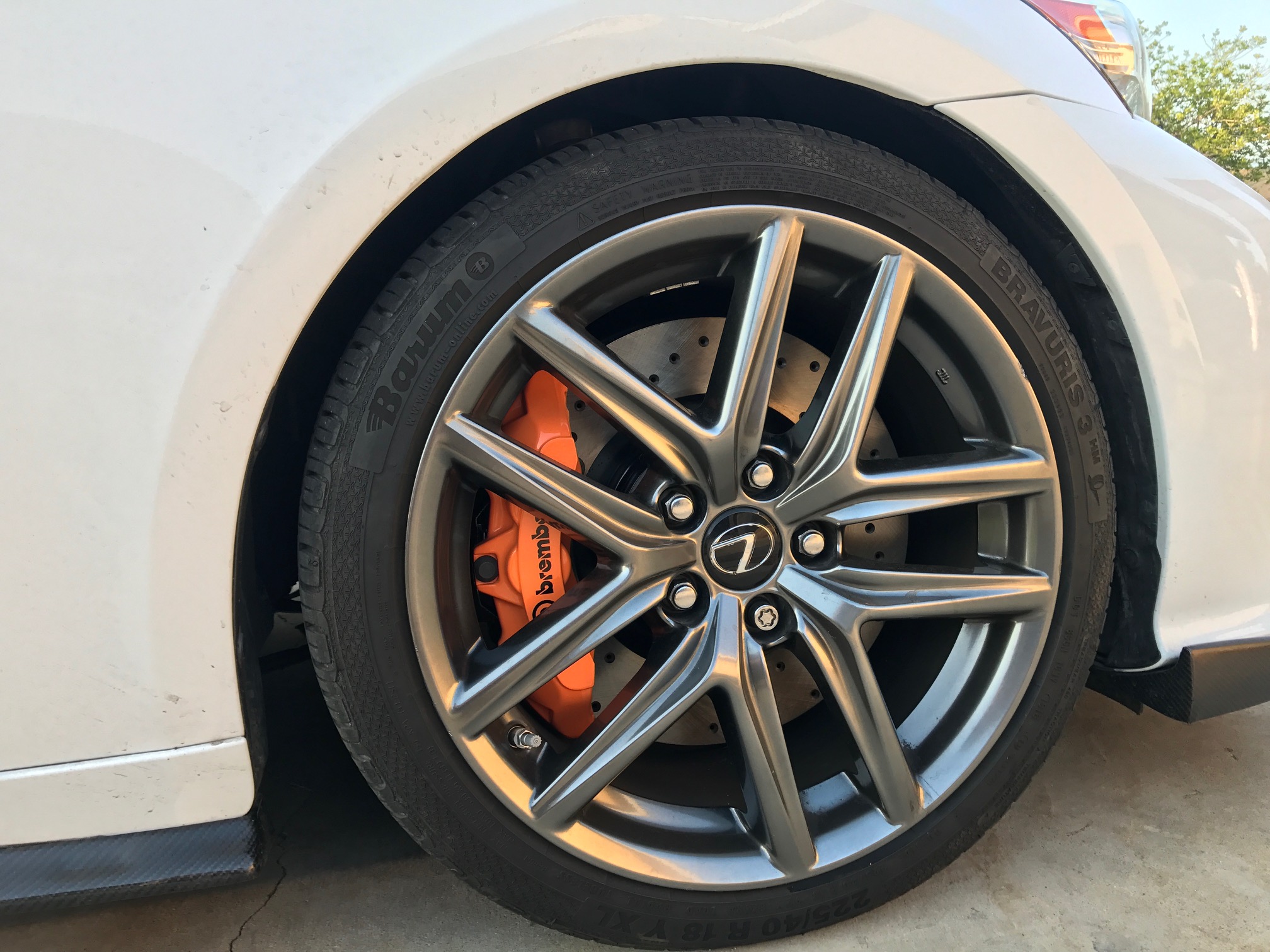

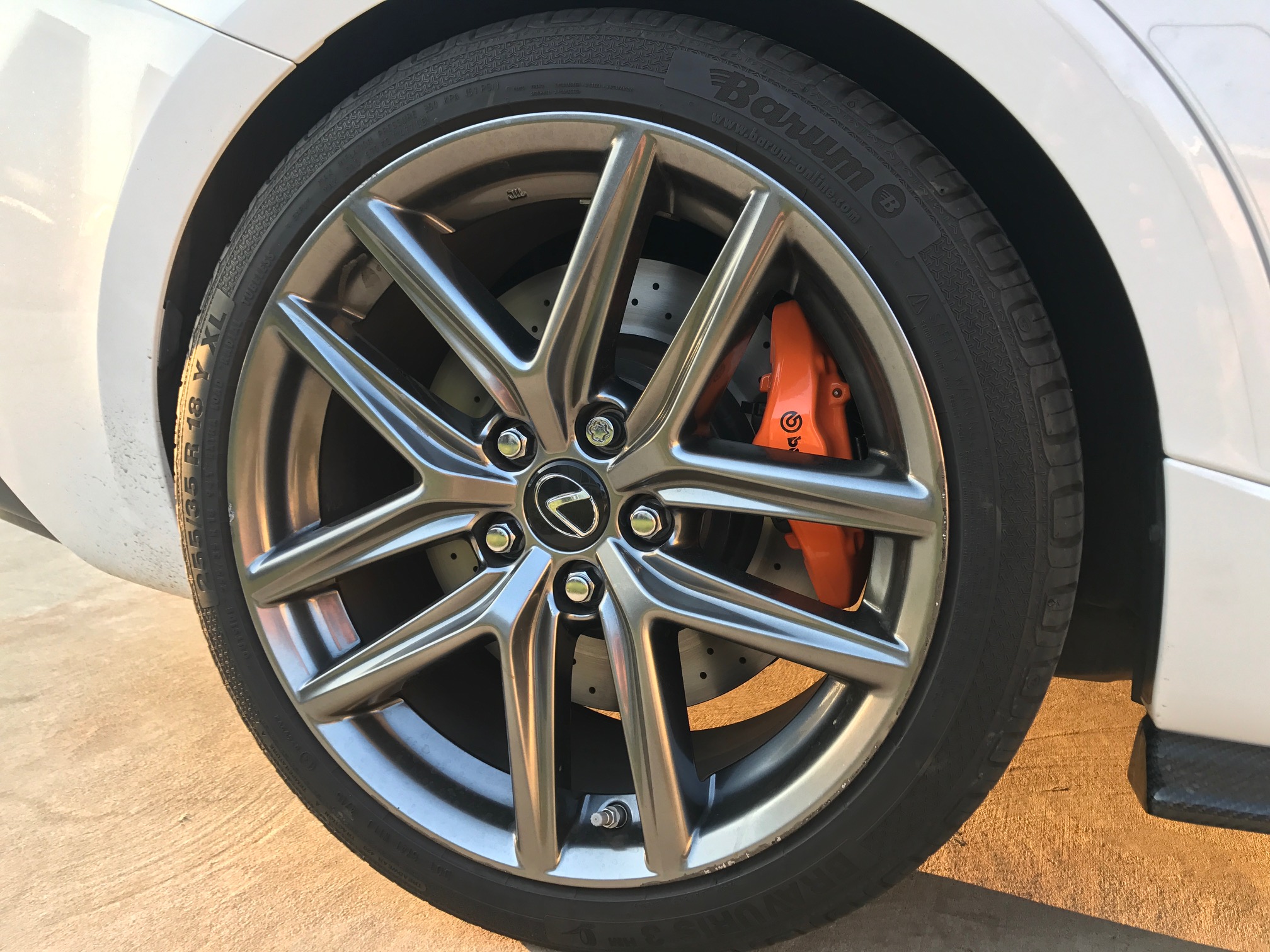

- Will clear F Sport wheels
- Aftermarket options:
Centric:
12144205: Centric C-Tek Right
12144204: Centric C-Tek Left
Stoptech:
128.44187R or 128.44205R: Stoptech drilled Right
128.44189L or 128.44204L: Stoptech drilled Left
applicability
| Year(s) | Model(s) | Additional Information |
|---|---|---|
| 1995 - 2000 | LS400 | Bracket IS3502.0 required for front. No solution for rear. |
| 1993 - 1998 | Toyota Supra MKIV | Bracket IS3502.0 required for front. Bracket GSFSC3001.0 required for rear. |
| 1992 - 2000 | Lexus SC300/400 (Z30), Toyota Soarer (JZZ30/31, UZZ30/31/32) | Bracket IS3502.0 required for front. Bracket GSFSC3001.0 required for rear. |
| 2001 - 2010 | Lexus SC430 (Z40), Toyota Soarer (UZZ40) | Bracket IS3502.0 required for front. No solution for rear. |
| 2001 - 2005 | IS300 | Bracket IS3501.0 required for front. No solution for rear. |
| 2006 - 2013 | IS250*, IS350* | Direct bolt-on for front and rear |
| 1993-1997 | GS300 | Bracket IS3502.0 required for front. No solution for rear. |
| 1998-2005 | GS300, GS400, GS430 | Bracket IS3502.0 required for front. No solution for rear. |
| 2006 - 2011 | GS300*, GS350*, GS430, GS450H, GS460 | Direct bolt-on for front and rear |
| 2014 - 2020 | IS250*, IS200T*, IS300*, IS350* | Direct bolt-on for front. Bracket ISF1.0 required for rear |
| 2013 + | GS350, GS450H | Direct bolt-on for front. Bracket ISF1.0 required for rear |
| 2016 + | GS200T | Direct bolt-on for front. Bracket ISF1.0 required for rear | 2015 + | RC200T, RC350 | Direct bolt-on for front. Bracket ISF1.0 required for rear | * RWD or AWD |
IS F
Information

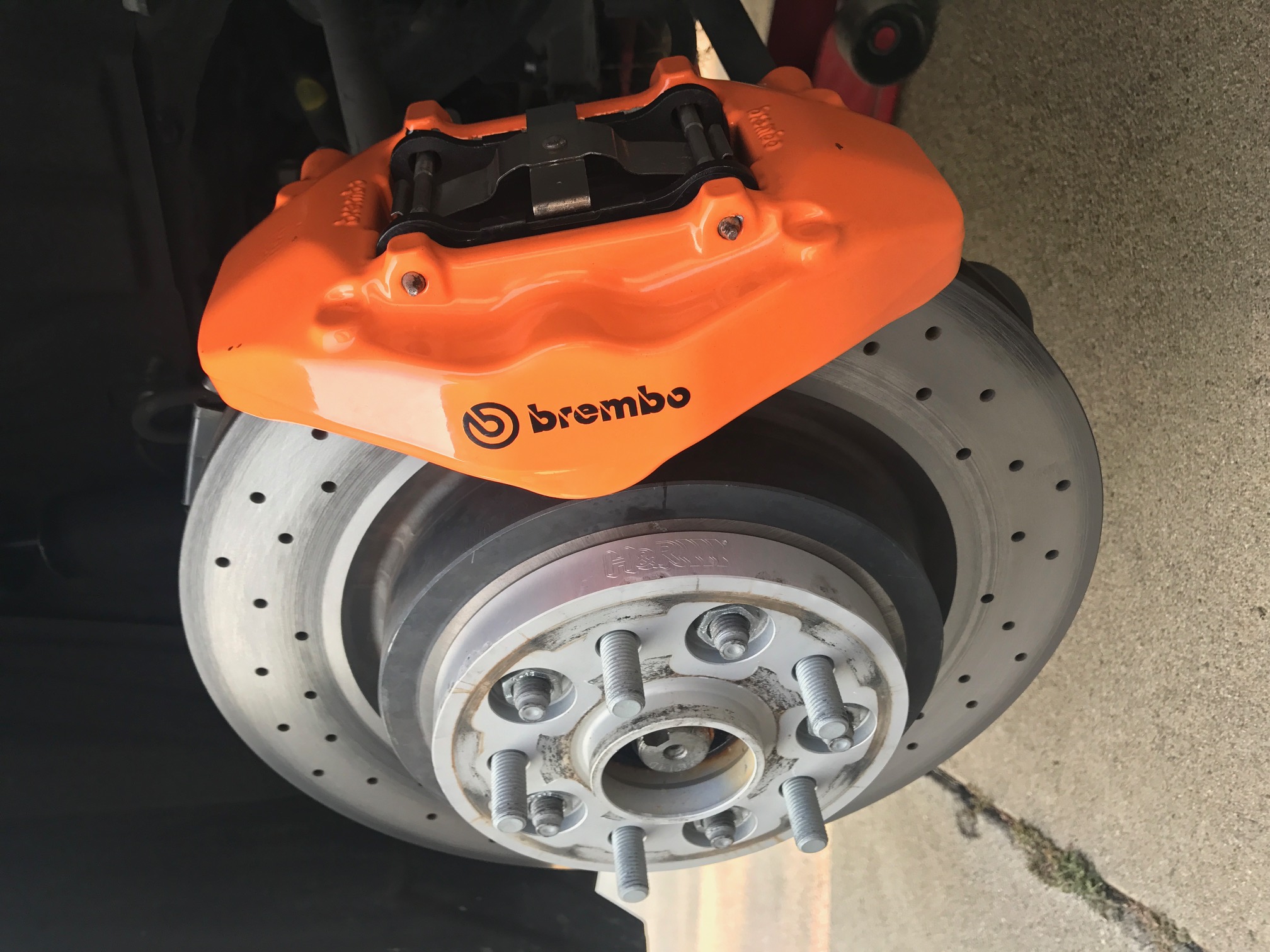

Some Lexus model year GS, IS, and RC have the ability to bolt-on 6 POT front Brembo calipers onto the car. These calipers with the right rotors will be a direct bolt-on without any use of shims, bracket or spacers. Depending on the model of the car, the rear Brembo caliper can be a direct bolt-on. There are two different version of the Lexus Brembo Calipers. 08-14 Lexus ISF or the 15-17 GSF/RCF.

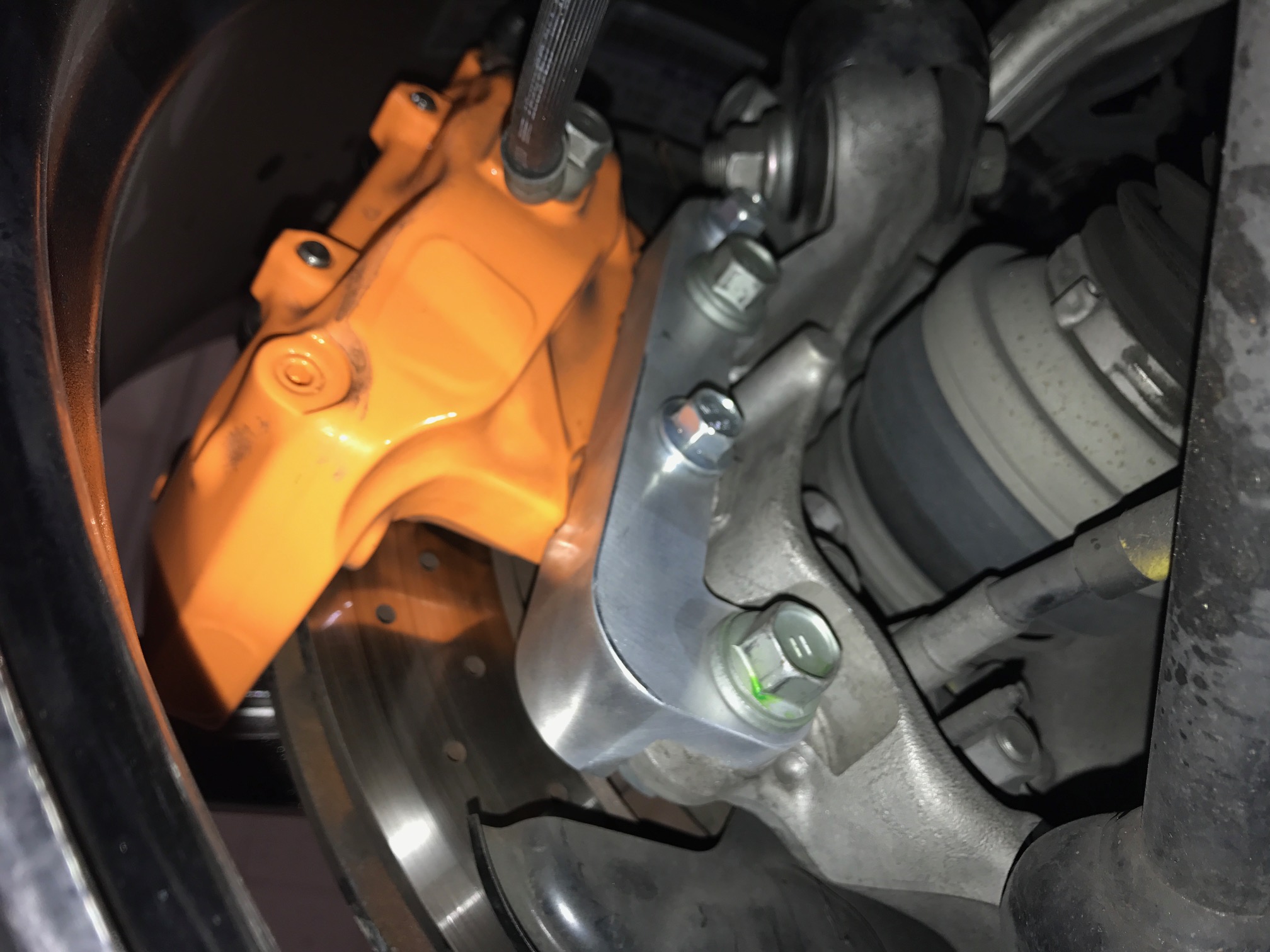

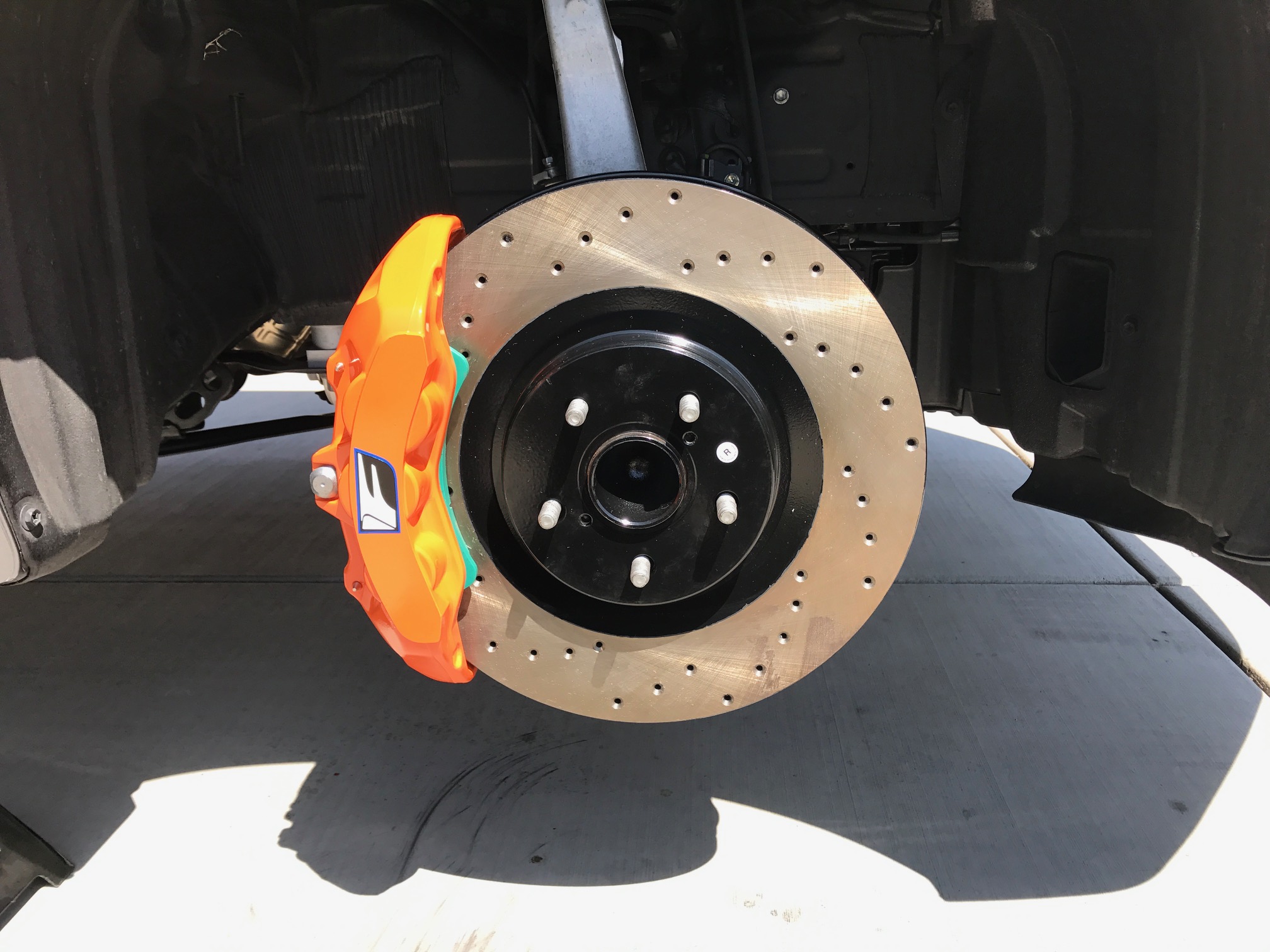

The ISF calipers are a direct bolt-on if you're using 2013 and up GS350 F Sport front brake rotors. 2015 and up RC350 F Sport also run the same front rotors. Therefore, if you own either of these cars then you would only need the full ISF caliper set, rear ISF rotors and bracket mounting kit. If you own a 2ND Gen IS or 3RD Gen GS then this entire setup would be bolt on. No rear mounting kit required. For 3RD Gen IS, 4TH Gen GS and RC cars, then the rear caliper bolts on using 350phi ISF1.0 caliper bracket. F Sport model cars will not need to cut the front dust shield as it's large enough. Any base model cars will require a change of dust shield for the front or removal/cut of the dust shield. The rear will require a cut of the dust shield on most model cars.
There are no special brake lines needed as your car's factory brake lines bolt up. You can purchase Lexus ISF Stoptech SS brake lines and it will bolt up.

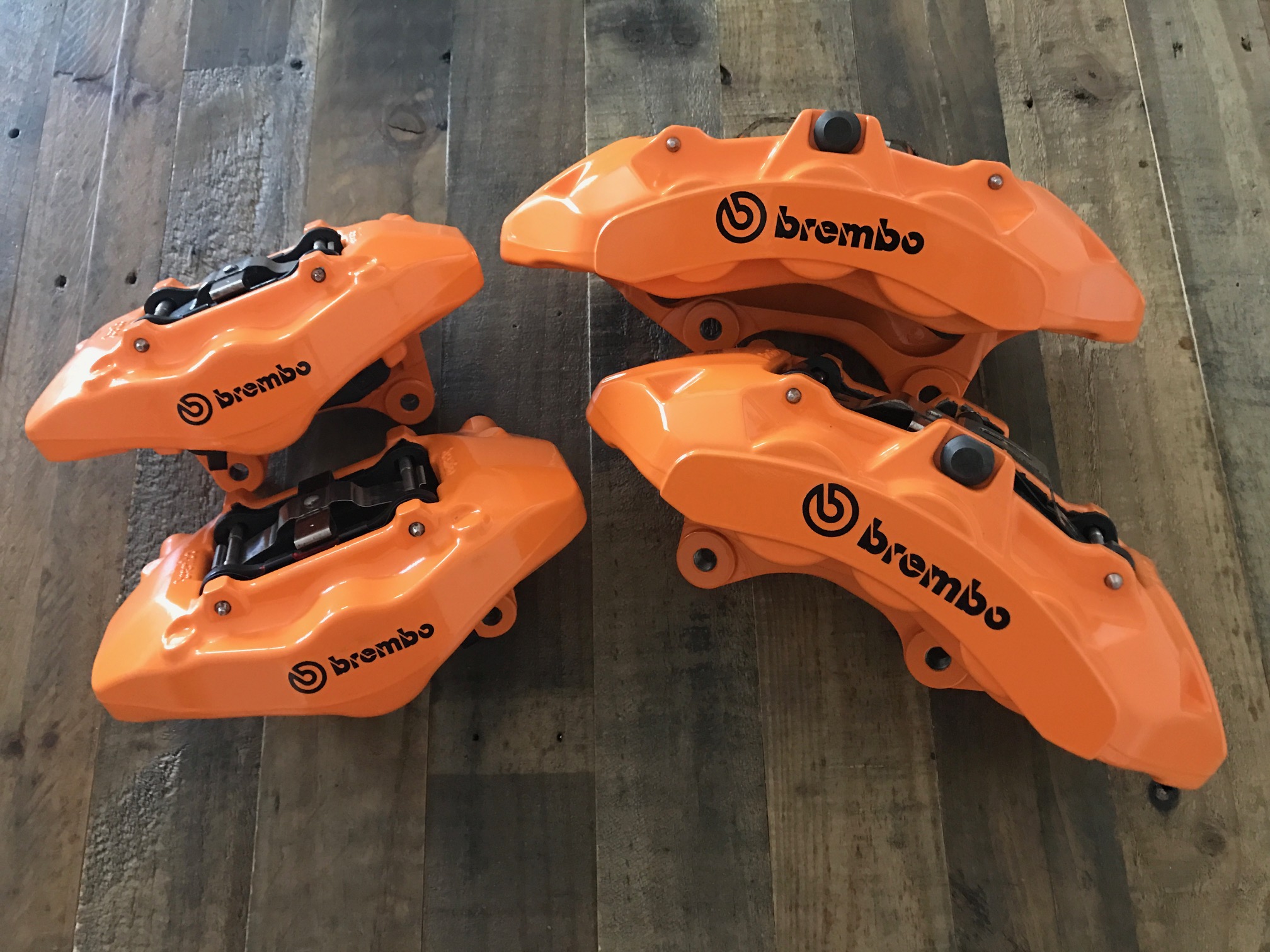

If you're powdercoating your calipers, please make sure that you clean and remove any layer of paint around the brake line valve. This will ensure that the crush washer to the brake lines sit flush with the caliper and does not cause any leaks.
Rear mounting kits has full instructions on installation.
