Lexus GSF/RCF BREMBO BRAKES
Installation for Lexus GSF/RCF brake caliper on various Lexus Applications
requirements
parts
- Front and Rear OEM Brembo GSF/RCF calipers
- Front and Rear OEM Brembo GSF/RCF rotors
- 350phi bracket mounting kit for some models
Alternate rotor options
- OEM toyota or Brembo would be best
- Centric/Stoptech Sport rotors are great
- Autozone Duralast
Notes
- Will require modifications to front and/or rear dust shield
- Will require modifications to rear calipers
- Will require wheels larger than 19" and can clear BBK
applicability
| Year(s) | Model(s) | Additional Information |
|---|---|---|
| 1995 - 2000 | LS400 | Bracket IS3502.0 required for front. No solution for rear. |
| 1993 - 1998 | Toyota Supra MKIV | Bracket IS3502.0 required for front. Bracket GSFSC3001.0 required for rear. |
| 1992 - 2000 | Lexus SC300/400 (Z30), Toyota Soarer (JZZ30/31, UZZ30/31/32) | Bracket IS3502.0 required for front. Bracket GSFSC3001.0 required for rear. |
| 2001 - 2010 | Lexus SC430 (Z40), Toyota Soarer (UZZ40) | Bracket IS3502.0 required for front. No solution for rear. |
| 2001 - 2005 | IS300 | Bracket IS3501.0 required for front. No solution for rear. |
| 2006 - 2013 | IS250*, IS350* | Direct bolt-on for front. No solution for rear. |
| 2008 - 2014 | IS F | Bracket ISFGSF1.0 required for front. No solution for rear. |
| 1993-1997 | GS300 | Bracket IS3502.0 required for front. No solution for rear. |
| 1998-2005 | GS300, GS400, GS430 | Bracket IS3502.0 required for front. No solution for rear. |
| 2006 - 2011 | GS300*, GS350*, GS430, GS450H, GS460 | Direct bolt-on for front. No solution for rear. |
| 2014 - 2020 | IS250*, IS200T*, IS300*, IS350* | Direct bolt-on for front. Bracket GSF1.0 required for rear |
| 2013 + | GS350, GS450H | Direct bolt-on for front. Bracket GSF1.0 required for rear |
| 2016 + | GS200T | Direct bolt-on for front. Bracket GSF1.0 required for rear | 2015 + | RC200T, RC350 | Direct bolt-on for front. Bracket GSF1.0 required for rear | * RWD or AWD |
GSF/RCF
Information

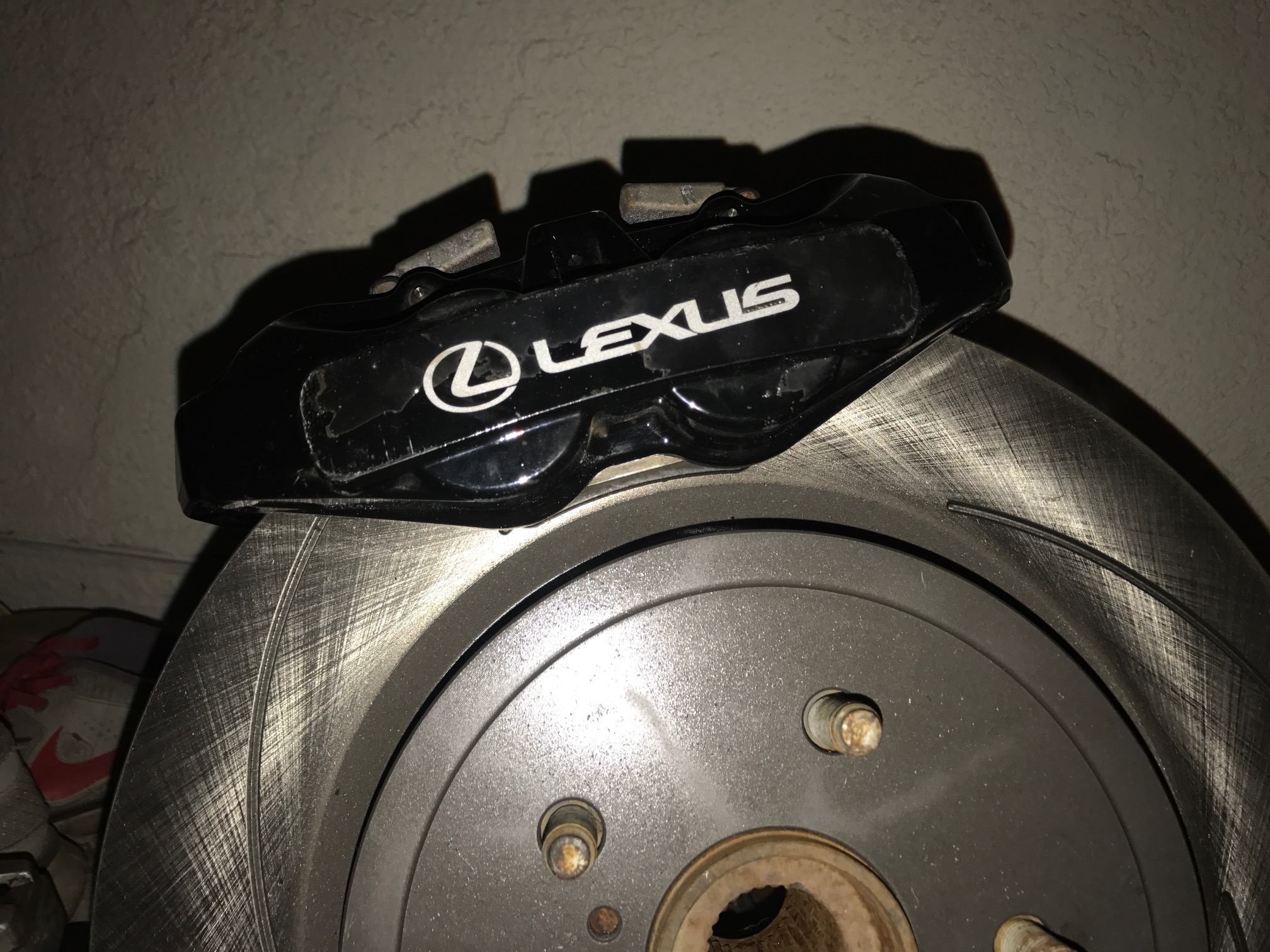

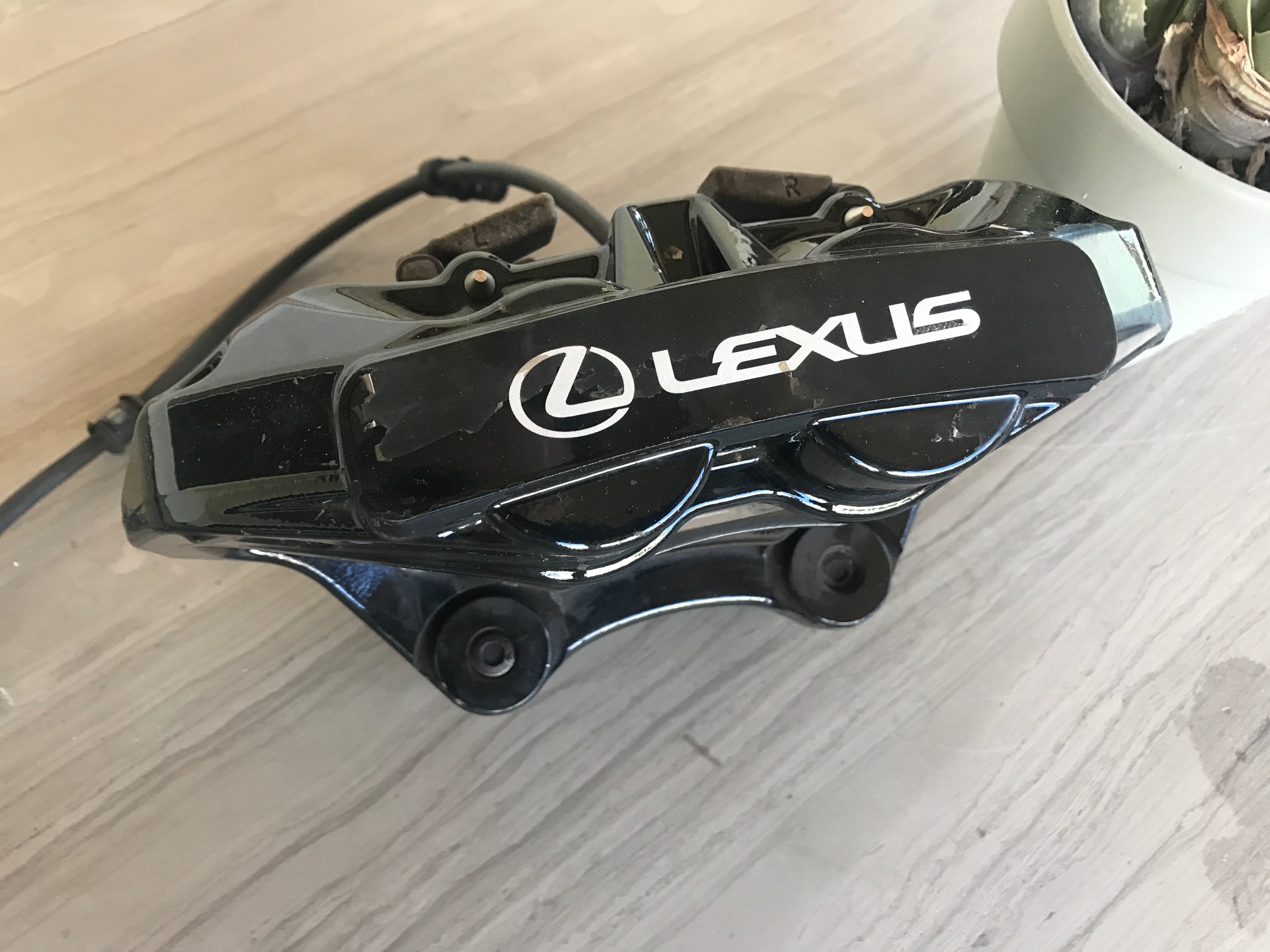

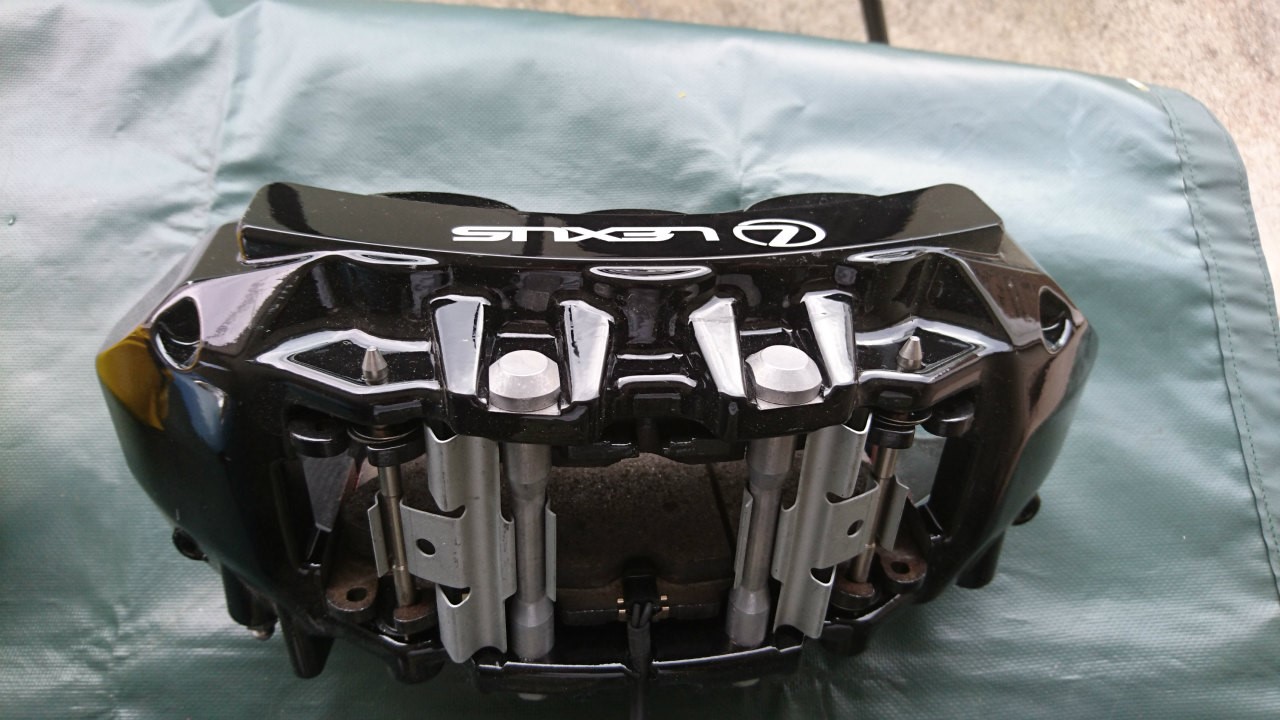

Some Lexus model year GS, IS, and RC have the ability to bolt-on 6 POT front Brembo calipers onto the car. These calipers with the right rotors will be a direct bolt-on without any use of shims, bracket or spacers. Depending on the model of the car, the rear Brembo caliper can be a direct bolt-on. There are two different version of the Lexus Brembo Calipers. 08-14 Lexus ISF or the 15-17 GSF/RCF.

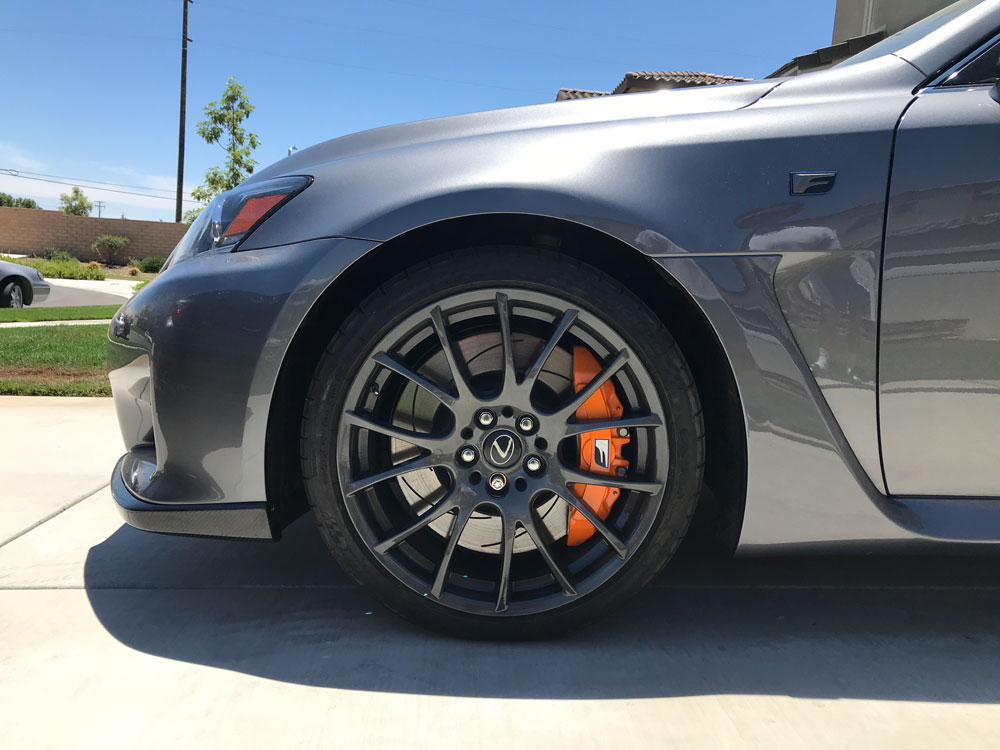

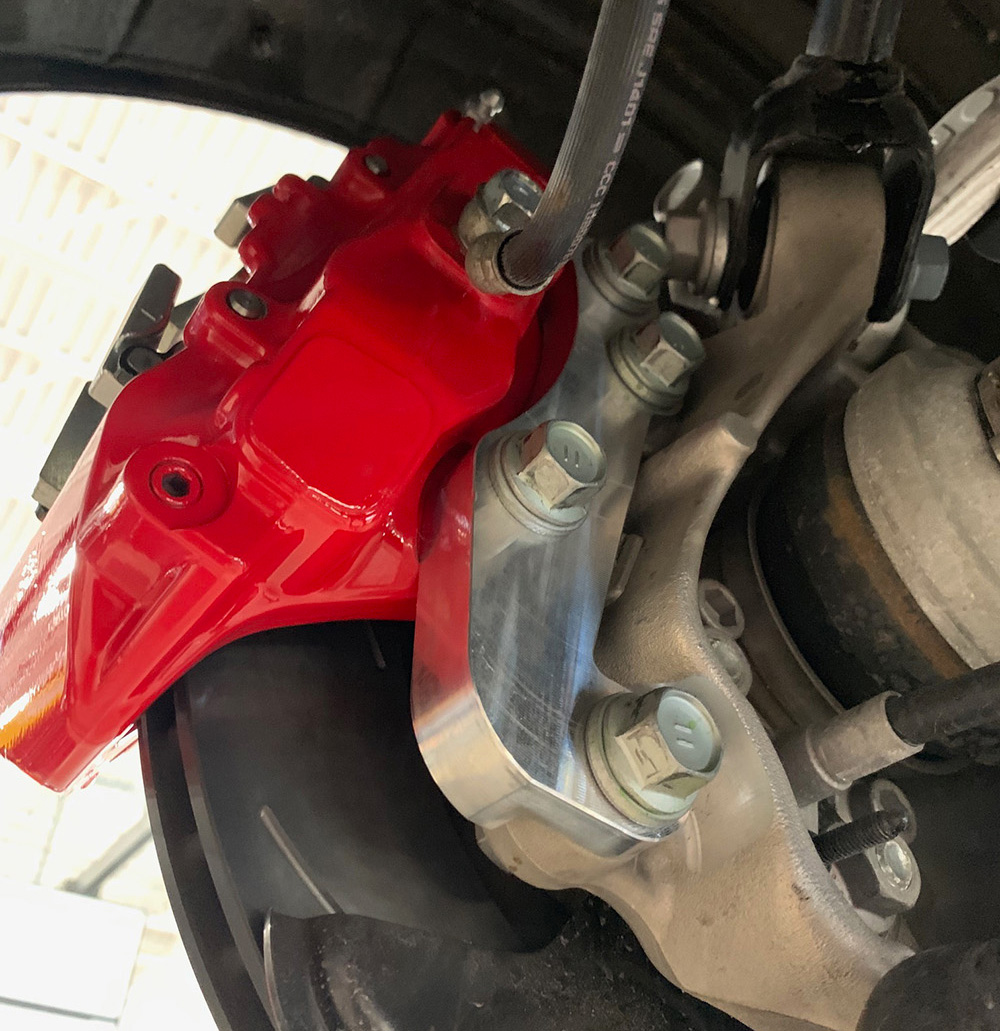

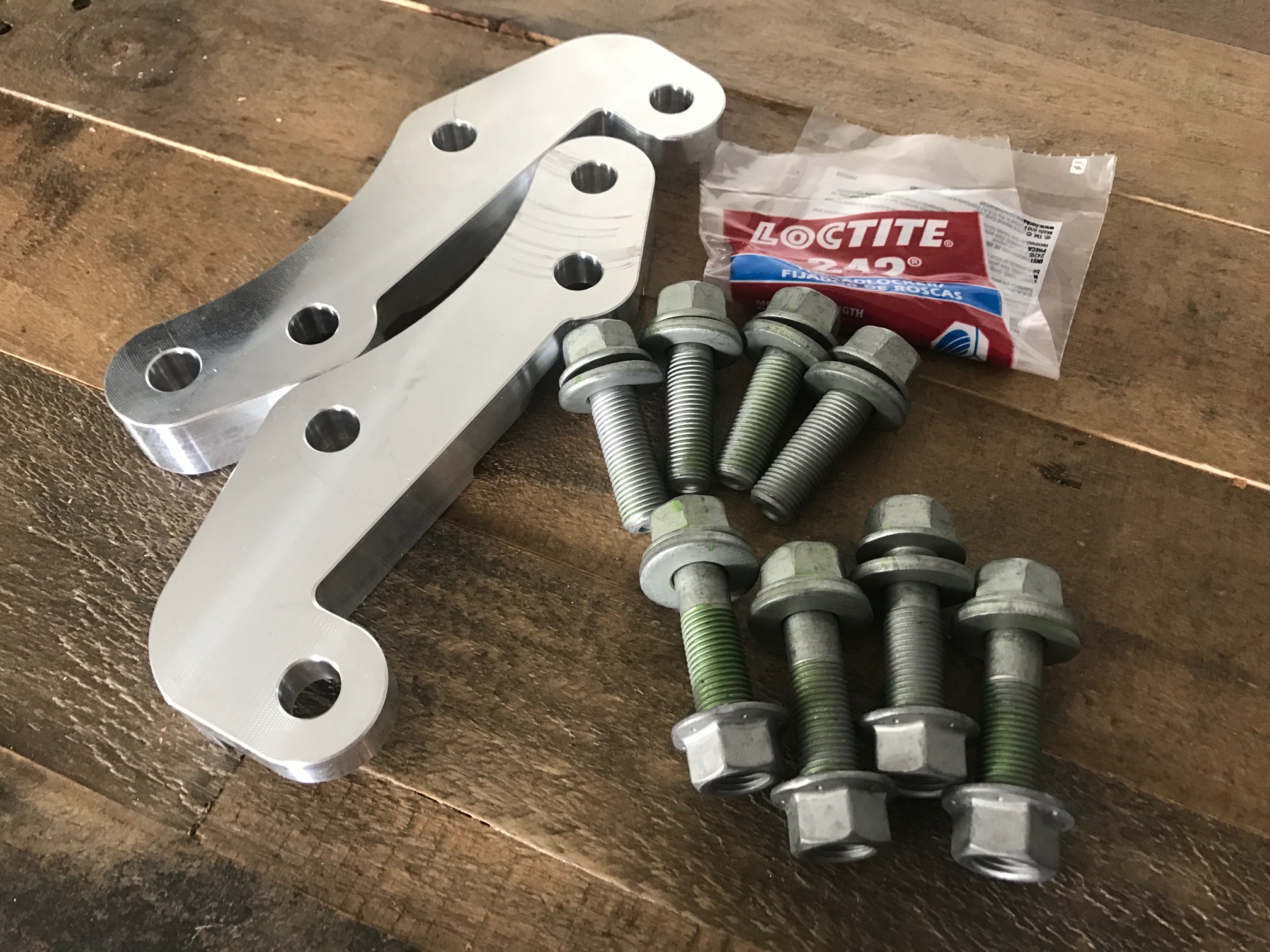

Besides the Lexus IS F, the GSF/RCF calipers are a direct bolt-on when using the GSF/RCF front rotors. Because the rotors are 380mm in size, a modification to the front dust shield will be required. Cutting off or bending the dust shield can work too. If you own a 2ND Gen IS or 3RD Gen GS then this entire setup would be bolt on only on the front. There is no current solution for the rear. For 3RD Gen IS, 4TH Gen GS and RC cars, then the rear caliper bolts on using 350phi GSF1.0 caliper bracket. For Lexus IS F, the front GSF/RCF front calipers and rotor will bolt on using 350phi caliper bracket ISFGSF1.0. Any base model cars will require a change of dust shield for the front or removal/cut of the dust shield. The rear will require a cut of the dust shield on most model cars.
There are no special brake lines needed as your car's factory brake lines bolt up. You can purchase Lexus ISF Stoptech SS brake lines and it will bolt up. Rear mounting kits has full instructions on installation.
If you're powdercoating your calipers, please make sure that you clean and remove any layer of paint around the brake line valve. This will ensure that the crush washer to the brake lines sit flush with the caliper and does not cause any leaks.
Front mounting kits has full instructions on installation.
